Compact Mobile Abattoir 300-800bph

All-in-one mobile unit shipped fully assembled, wired up and almost ready to run. You just need to connect 3-phase power, water and drainage.

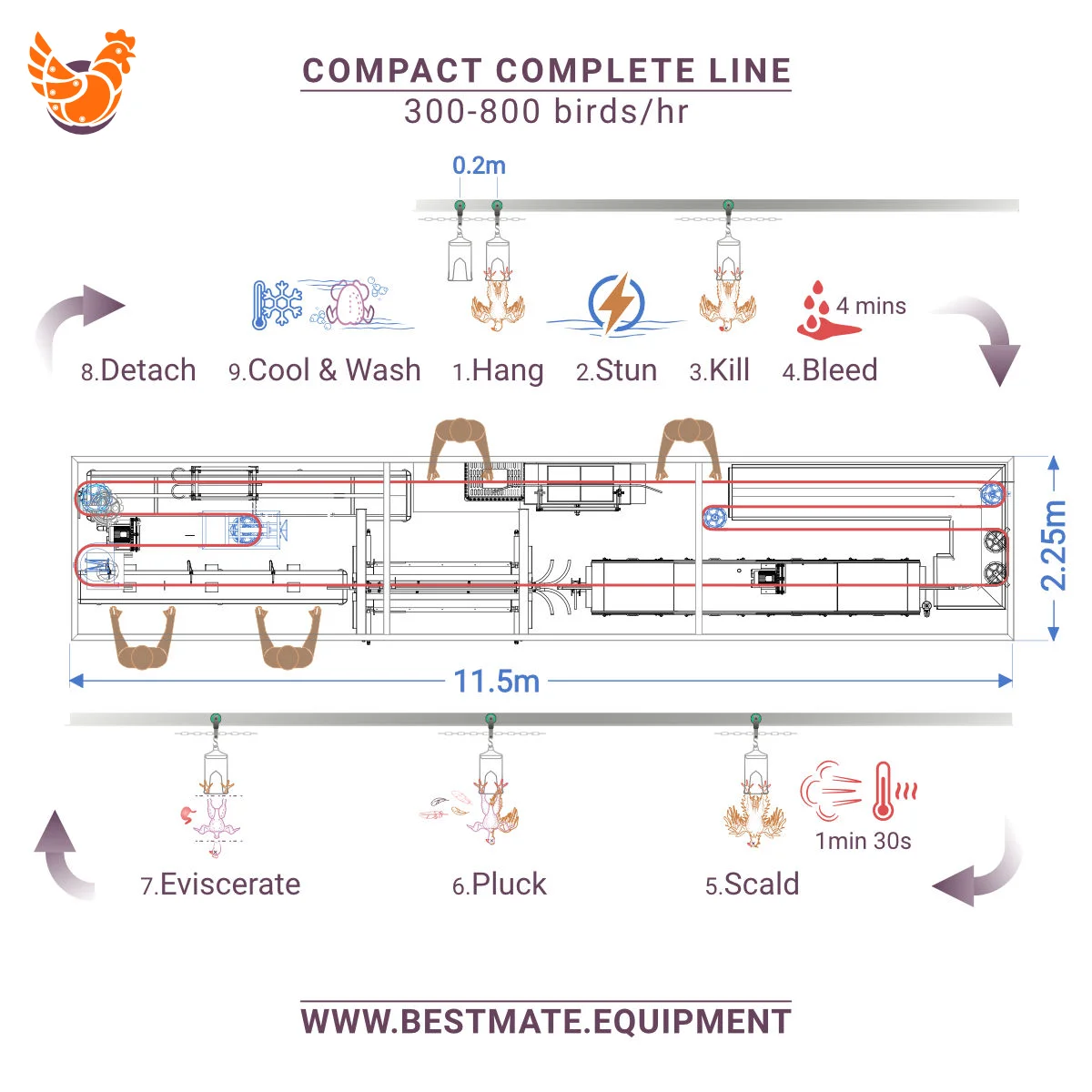

Complete poultry processing line:

1. Adjustable height table for unload & hanging (for live birds up to 2.5kg)
2. Overhead track, chain, nylon trolleys (20cm spacing), stainless steel shackles
3. Electric stun bath
4. Bleed chute (4 mins)
5. Automatic scalder (90 secs, 52-61℃)
6. Automatic adjustable vertical plucker
7. Eviscerate on-line, with chute, giblet tray and water inlet taps
8. Adjustable automatic detacher
9. Wash and cooler (finished product: whole chicken carcass)

Advantages:

• Plug & Play solution
• Convenient transportation, the assembled line fits inside a standard 40 ft shipping container
• Ultra compact, less than 11.5m x 2.3m (40ft x 8ft)
• Easy installation, no need for supplier engineers
• Save labor and investment, no need to build factories and workshops
• High production efficiency – up to 800 birds per hour
• Simple operation, low maintenance

Included in the package:

• Three phase five wire cable
• Stainless steel wire pipe
• Water pipes and fittings
• 1 x 0.75kW Driving Motor ￠485mm
• 1 x Tensioner
• 1 x Frequency Converter
• 2 x 90° & 1 x 180° Guide Wheels
• 2 x Fluctuant rails

Machine Specs:

• Power:  380V 3-Phase 50Hz / or customized
• Line speed processing capacity: 300-800 bph
• L x W: 11500 x 2250 mm
