Poultry Organ Extractor Vacuum

Powerful vacuum technology for rapid extraction of internal organs like the lungs, liver, and kidneys. This poultry suction machine is meticulously engineered, comprising a sophisticated vacuum pump, a circulating water reservoir, a lung suction gun assembly, and a vacuum exhaust valve, among other components. It is furnished with three interchangeable gun heads, with the option for customisation to accommodate additional heads, thereby enabling multiple operators to work concurrently and significantly enhancing production efficiency. The entire machine is constructed of stainless steel, which prevents rust and decay.

Benefits:

  • Significantly alleviates the physical worker strain,
  • Minimises labour requirements,
  • Boosts production efficiency,
  • Suitable for humid environments,
  • Improves product quality,
  • Self-cleaning pipe.

Straightforward Operation:

The worker simply holds a suction gun and inserts it deep into the chicken’s abdominal cavity and turns on the switch. The formidable suction force effortlessly draws the chicken lungs into the vacuum pump. The suction apparatus is outfitted with a water pipe designed to simultaneously cleanse both the suction head and the connecting pipe, ensuring that the chicken lungs within the vacuum pump are expelled.

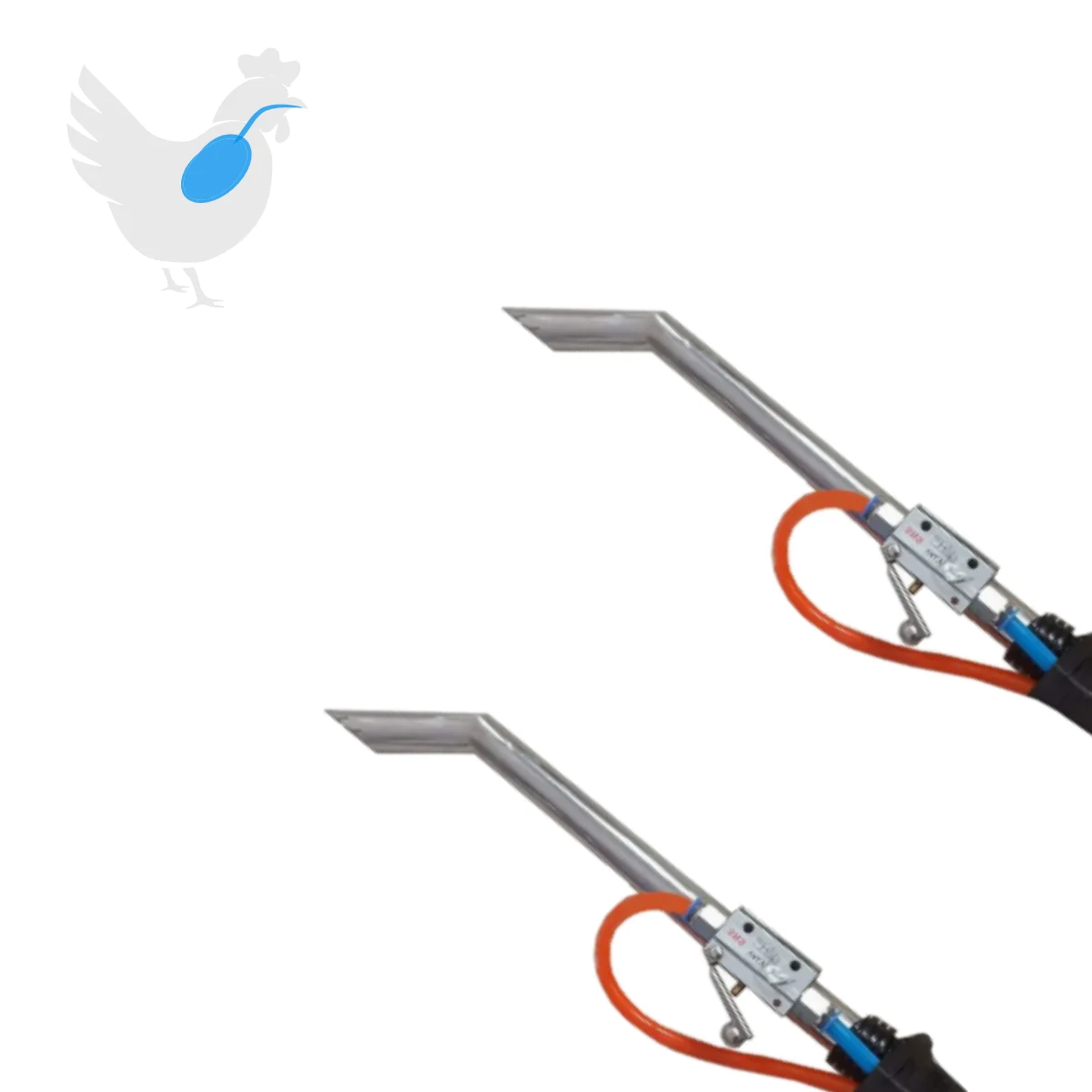

Double Suction Gun Suction Machine Details:

  • Power: 5.5kW
  • Dimensions: (L×W×H): 1800 x 1200 x 2200 mm
  • Set pressure: -0.06—0.07Mpa
  • The gun in diameter: φ22mm
  • Production:  700-1500p/gun



Model BM-LS02 Categories , Line
